Technical specifications
DATASHEET (PDF)

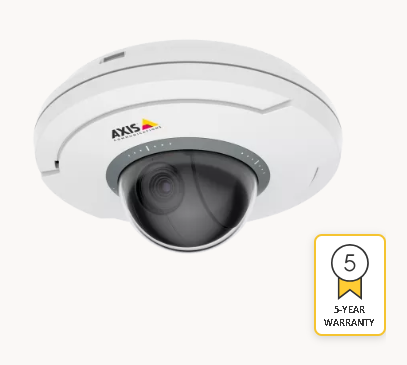

Variants: AXIS M5074
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.8"
Lightfinder -
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) -
Security
Property description Property value
Signed OS Yes
Secure boot –
TPM –
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating -
IP rating IP51
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version -
Orientation aid -
Video
Property description Property value
Max video resolution 1280x720
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.2 - 11.0 mm
Horizontal field of view 71 - 14 °
Vertical field of view 40-8 °
Pan, Tilt, Zoom
Property description Property value
Pan range +/-179
Tilt range 90
Guard tour -
Optical zoom 5
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 –
Audio
Property description Property value
Audio Support Yes
Built-in microphone Yes
System Integration
Property description Property value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs -
Network
Property description Property value

PoE Class 3

Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M5074 AR, AU, BR, CN, EU, JP, KR, UK, US 02345-001
AXIS M5074 IN 02345-113
