Technical specifications
DATASHEET (PDF)

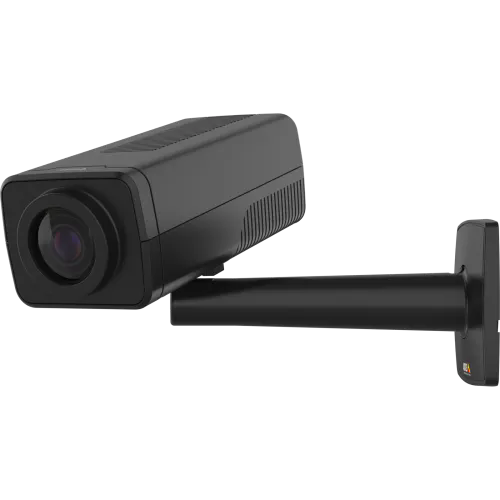

Variants: AXIS Q1728 / AXIS Q1728 48 mm
Camera
Property description Property value
Lightfinder Lightfinder 2.0
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Image sensor CMOS
Image sensor size 1/1.2"
Wide dynamic range Forensic WDR
Video
Property description Property value
Max video resolution 3840x2160
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Property description Property value
Focal length * 5.9 - 13.3 / 15.2 - 48.7 mm
Horizontal field of view * 108 - 49 / 42 - 13 °
Vertical field of view * 58 - 27 / 24 - 7 °
Lens mount -
Replaceable lens –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 On
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 3
Wireless –
Security
Property description Property value
Signed OS Yes
Secure boot Yes
Secure keystore Secure Element (CC EAL6+, FIPS 140-3 Level 3)
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -10 to 60 °C
Outdoor Ready –
Vandal rating -
IP rating -
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 13.0 W
Power (average) 7.0 W

DC inputPart number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q1728 48 mm AR, AU, BR, CN, EU, JP, KR, UK, US 02840-001
AXIS Q1728 AR, AU, BR, CN, EU, JP, KR, UK, US 02839-001
voltage 10-28 V
