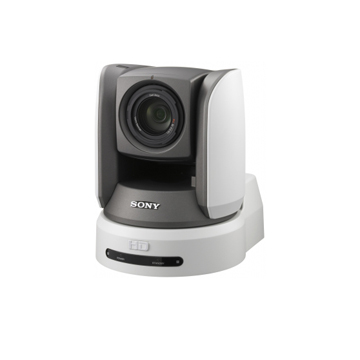

BRC-Z700 Three 1/4-inch ClearVid CMOS sensors SD/HD robotic camera

Brand:SONY

Model:BRC-Z700

Detail

BRC-Z700 Three 1/4-inch ClearVid CMOS sensors SD/HD robotic camera

Accessories
RM-IP10
IP remote control panel for BRC cameras

BRU-H700
HD optical multiplex unit for BRC-H700

RM-BR300
Remote control unit for BRC series cameras

BRBK-IP7Z
IP remote control option board for BRC-Z700 cameras

BRBK-MF1
HD optical multiplex card for BRC-Z700 robotic camera

 Specifications


Camera
Image Sensor
1/4-type CMOS x3
Image Sensor (Number of Effective Pixels)
Approx. 1.04 Megapixels
Approx. 1.12 Megapixels
Signal System
60 Hz: 1080/59.94i, NTSC
Sensitivity
F5.6 (Not to be published)
Minimum Illumination (50IRE)
6 lx (50 IRE, F1.6, +24 dB)
Horizontal Resolution
700 TV line (Analog) (Not to be published)
S/N Ratio
50 dB
Gain
Auto/Manual (0 to +24 dB and Hyper Gain)
Shutter Speed
1/10,000 s to 1/60 s or 1/10,000 s to 1/50 s
Exposure Control
Auto, Manual, Priority mode (shutter priority, Gain priority & iris priority), EV compensation
Color AE Function
No
White Balance
Auto1/Auto2/Indoor/Outdoor/One-push/Manual
Optical Zoom
20x
Digital Zoom
4x
Focusing System
Auto/Manual
Horizontal Viewing Angle
55.2°(Wide-end)
Focal Length
F1.6 (Wide), F2.8 (Tele)
f = 3.9 mm to 78 mm
Minimum Object Distance
800 mm (Tele)
500 mm (Wide, Limiter On)
10 mm (Wide, Limiter Off)
Pan/Tilt Angle
Tilt: +90°/-30°
Pan: ±170°
Pan/Tilt Speed
Tilt: 0.22° to 60°/s
Pan: 0.22° to 60°/s
Preset Position
16
Camera Features
Auto ICR
No
Wide-D
No
Image Stabilization
On/Off (Optical)
Image Flip
On/Off
ND Filter
No
Color Gain
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
Color Hue
No
Color Matrix
ON/OFF
Color Detail
Off/Narrow/STD/Wide switchable in menu
Skintone Detail
No
Gamma
Normal/Cinema
Gamma Level
NA
Black
NA
Black Gamma
NA
Knee Point
No
Knee Slope
NA
Knee Sat Level
NA
Auto Focus Assist Function
On/Off
Flicker Cancel
On/Off
B&W
On/Off
Color Bar
On/Off
Interface
HD Video Output
Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
SD Video Output
Composite, Y/C
Camera Control Interface
RS-232C/RS-422
(VISCA)
External Sync. Input
Yes
General
Power Requirements
DC 10.8 V to 13.2 V
Power Consumption
Max 28.8 W (without optional cards)
Operating Temperature
32 °F to 104 °F
0 °C to 40 °C
Storage Temperature
-4 °F to +140 °F
-20 °C to +60 °C
Dimensions (W x H x D) *[1]
7 7/8 x 9 3/4 x 9 3/8 inches
198 x 247 x 238 mm
Mass
9 lb 15 oz
4.5 kg
Optional Card Slot?
Yes
Body Color
White
Size of Screw Hole for Tripod
1/4-20UNC
Mountable Angle
±15°
Ceiling Mount
Yes
Supplied Accessories
Wire rope (1)
Screws(M4 x 8) (1)
Screws(M3 x 8) (7)
RS-422 connector plug (1)
Operating instructions (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
AC power cord (1)
AC power adaptor (1)
Notes
Note
*[1] The values for dimensions are approximate.
