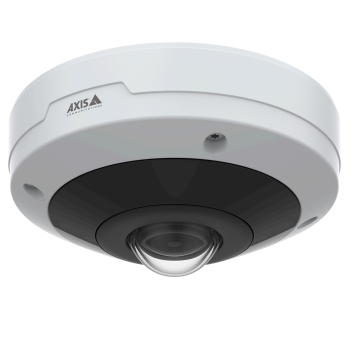

AXIS M4317-PLVE Panoramic Camera
6 MP dome with 360° view and deep learning
With a 6 MP sensor, this discreet mini dome offers excellent image quality and a complete 180° or 360° overview.
Featuring a stereographic lens and Sharpdome 360, it delivers greater sharpness at the edges of the image. Built-in IR
illumination with individually controllable LEDs ensures clear, reflection-free footage and excellent image quality even
in low light or complete darkness. A deep learning processing unit enables unique opportunities for analytics based on
deep learning. Plus, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. Furthermore,
Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
> Complete 180° and 360° overview
> Built-in IR with individual IR LEDs
> Support for deep learning analytics
> Built-in cybersecurity features
> Digital roll for ease of installation
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Speed Monitor
Visualize radar data and get actionable insights
AXIS Video Motion Detection
Supported
AXIS People Counter
Insight beyond people counting
Technical specifications
Variants: AXIS M4317-PLVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 2160x2160
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.1 mm
Horizontal field of view 182 °
Vertical field of view 182 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support –
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free
NAME AXIS REGION PART NUMBER
AXIS M4317-PLVE AR, AU, BR, CN, EU, JP, KR, UK, US
02510-001
AXIS M4317-PLVE IN
02510-113
Optional accessories
AXIS T8415 Wireless Installation Tool, AXIS T94T02D
Pendant kit, AXIS TM3814 Skin Cover Black,
AXIS TM3204 Recessed Mount, AXIS TM3206 Recessed
Mount, AXIS Mounts and Cabinets, AXIS Surveillance Cards
