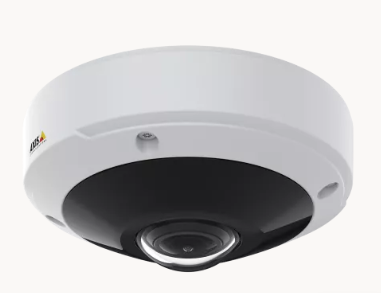

AXIS M3057-PLR Mk II Dome Camera
6 MP onboard dome with 360° panoramic view
Complete 180° and 360° overview
Optimized for transportation industry
Forensic WDR, Lightfinder, OptimizedIR
Factory-focused with digital roll
Built-in cybersecurity features
Technical specifications
DATASHEET (PDF)
Variants: AXIS M3057-PLR Mk II
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 2016x2016
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.56 mm
Horizontal field of view 183 °
Vertical field of view 183 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support –
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 55 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M3057-PLR Mk II AR, AU, BR, CN, EU, JP, KR, UK, US 02457-001
AXIS M3057-PLR Mk II IN 02457-113
